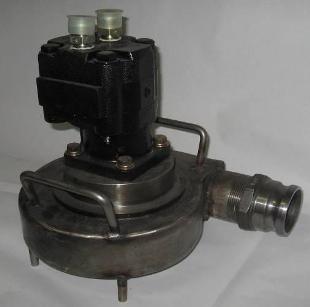

3.3 High pressure Hand Gun is used for precise clean up in the hard to reach areas. It is used for the tanks with a lot of built in equipment (ladders, partitions, columns, heat exchangers, etc.), change of holding product (if required), and final clean up for the welding works. This process usually takes not more than 2 hours.3.4. Hoses All MegaMacs components are connected by special network of hoses. There are three types of hoses: hydraulic, process and return. Hydraulic hoses distribute power from MegaMacs hydraulic station to all components including auxiliary equipment. Process hoses move water or cutter stock to the cannon or wash heads. Return hoses provide diluted sludge delivery to the main tank of MegaMacs. All types of hoses are equipped with quick disconnect connections which reduce timing for set up and prevent leaks. Metal sleeves increase hoses durability and serve as a grounding network for the system.3.5. Submersible Booster Pump. Submersible Booster Pump is a small, lightweight portable pump that is used for the transfer of liquefied sludge from storage tanks and sludge lagoons to the MegaMACS. It is primarily used in conjunction with a liquid jetting device to extract and return liquids and solids to the cleaning system for separation, reclamation, and reuse. Threaded suction ports allow multiple pumps to be run in series for pumping liquids over longer distances, while the pump’s hydraulic drive allows the pump to be fully submerged in the sludge being pumped without fear of damaging the drive motor. Pic. 9 Booster Pump Pump type: Open impeller centrifugal Size: 3" x 3" x 7-1/4" Weight: approx: 90 lbs (40.8 kg) Max Delivery: 500 GPM (113.6 m 3/hr) -pumping waterMax Head: 100 feet (30 m) Maximum operating Temperature: 200 0 F (930C)Construction: SS case / Iron impeller Seal: Mechanical with carbon vs. ceramic seal faces Hydraulic Requirements: 30 GPM (6.8 m 3/hr) @ 2500 PSI (172 bar)

|
