3 in 1 Feed System
|
The 3 in 1 Feed
System can virtually handle any
solid feed material problem in a
closed
loop process.
This feed system enables thermal
treatment to proceed,
eliminating multiple
handling steps,
extra equipment and personnel
that often add time and expense
to
treatment

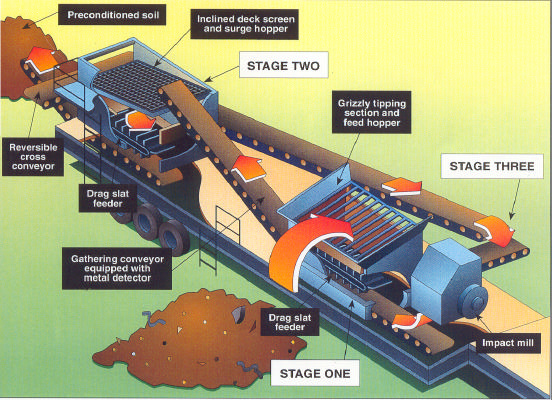

operations. In stage one, soil
is scalped through a hydraulic
tipping grizzly
section. Soil
passing the grizzly enters the
feed hopper, which has steep
sides to promote flow of highly
plastic soils. The material is
drawn out of the hopper and
sliced on a variable speed,
bar chain drag slat feeder.
Material passes through an
electric metal detector. As
metals are detected, operations
stop automatically so scrap
metals can be removed. Stage
two consists of an inclined
single deck screen to separate
oversized from sized particles.
Material passing this screen
goes into a surge hopper and is
fed by a bar chain feeder to
the thermal processor. Oversize
material drops to a reversible
cross conveyor which
gives the operator the choice of
rejecting oversize particles or
sending them on to stage
three. Stage three is an impact
mill equipped with air blasters
that can shred clay or
crush solids such as rock.
Discharged material from the
crusher falls on the original gathering conveyor
to be returned to the sizing
screen for final separation.
|
|
|
|
