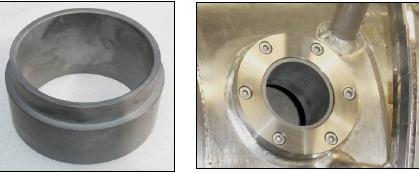

Pic. 18 Field replaceable tungsten carbide feed ports.

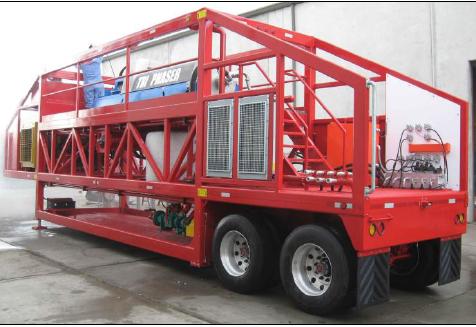

Pic. 19 Centrifuge mobile unit
6.3 Centrifuge unit specification
· Trailer parameters
|
Dimensions:
|
480" (12,2 m) L x 96" (2,44 m) W x 156" (3,96 m) H
|
|
Weight:
|
Nominal 55,000 lbs (24.9 tons)
|
|
Suspensions:
|
Single Point Trunnion #44,000 capacity.
|
|
Brakes:
|
S cam, air operates spring brakes.
|
|
Wheels and Tires:
|
11R-225 Tires mounted on aluminum wheels.
|
|
· Diesel
Engine:
|
Caterpillar C-9 275 BHP @ 2200 RPM
|
|
· Fuel Tank
Capacity:
|
2270 liters.
|
· Three Phase centrifuge
· Centrifuge
materials of construction
· Centrifuge pond depth adjustment
|
Hydraulically driven. Maximum Speed 2,700 RPM
Acceleration rate 2,300 G.
Wetted parts - Stainless Steel minimum 316
Frame - Painted Steel
Overall Noise dampening cover - Fibre glass
Heavy phase (Water) - Variable Position pipette
Light phase (Oil) - Adjustable setting tubes
|
|
· Light Phase
Pump (oil)
|
Progressive Cavity Pump 22.7 м 3/hr
@ pressure 6 bar.
|
|
· Heavy Phase
Pump (water)
|
Progressive Cavity Pump 22.7 м 3/hr
@ pressure 6 bar.
|
|
· Helical conveyer
|
For evacuation of solid phase
|
|
· Hydraulic System
|
Open, pressure compensated system with production
capacity 22.7 м3/hr
@ 172.4 bar.
Centrifuge helical drive hydraulic system is a
close loop with production capacity 11,8 м3/hr
@ 275.9 bar
Centrifuge rotor hydraulic drive is a pressure
compensated with open loop with production capacity
5,2 м 3/hr
@ 255.1 bar
Centrifuge has filtration and cooling systems.
Tank for hydraulic fluid is 1022 liters capacity
and equipped with thermometer and level gauges. Turn
capability off by low fluid level
|

|
|
|
