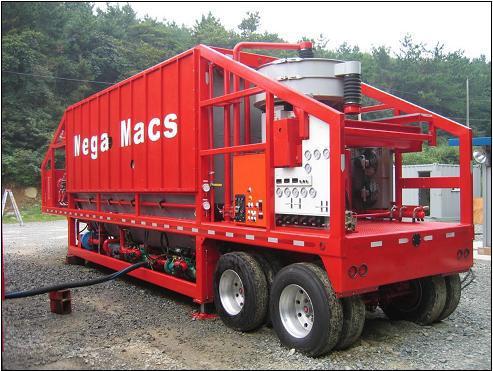

2. MegaMacs – Main Technological Unit. Pic. 1 MegaMacs mobile system 2.1. Main elements. MegaMacs major components are mounted on a two axles trailer with eight 11R-225 aluminum wheels with pneumatic braking system. Components are covered with easy access, removable metal covers to prevent breakage during transportation mode.Thermo isolated Main Process Tank holds sufficient quantity of liquefaction agent. The close loop process returns agent, with liquefied sludge, back from reservoir. Main process tank is made of carbon steel plates and equipped with fixed weir baffles, which aid in the separation of the light-floating phase. Once this separation has occurred the tank’s floating skimmer system removes this light phase to the outside where the Skimmer pump delivers it for further processing or recovery. As the heavy, not floating solid phase, settles to the Main Process Tank V-shaped bottom, a slow rotating screw thickens and conveys them to the back of the tank where they exit the tank through the Solid’s pump on their way to further processing or disposal. The Wash pump draws the purified liquefaction agent through Strainer and Heat Exchanger to one of the peripheral devices (Robotic Cannon, Orbital Wash , High Pressure Hand Gun, or Sludge Extractor) installed inside the reservoir.   |
